| AED Model | Philips HeartStart HS1 (M5066A) |
| Technology | SMART Biphasic — AHA Class IIa "standard of care" · 40+ peer-reviewed studies |
| Energy & Current Delivered | 150J · 21.0A — more current than most AEDs at 200J (current is the clinically relevant measure: AHA, ERC) |
| Shock Time (CPR pause) | ~8 seconds (Quick Shock) — one of fewer than 4 AEDs in the world meeting this standard |
| Guidance System | Voice-guided, step by step — no medical knowledge required |
| Adult Pads (M5071A) | Pre-installed · for patients 8+ years / 25kg+ · 2 years and 2 months standby life after installation |
| Battery (M5070A) | Lithium · 4-year standby after insertion · Install Before date printed on battery label |
| Child Pads (M5072A) | For patients <8 years / <25 kg · 2 years · sold separately · €145 · 0% VAT |
| Country of Origin | USA |
| Indemnification | Void if expired or non-Philips consumables used — grace period ended June 2023 |
Best chance of survival is a shock within 3-5 minutes of collapse (Scott 2017, Myat 2018). Current — not energy in joules — is the physiologically relevant measure (AHA, ERC). At 150J the HS1 delivers 21.0A; a competitor at 200J delivers only 18.5A. The HS1's SMART Biphasic waveform adapts to each patient's impedance in real time to maximise efficacy.

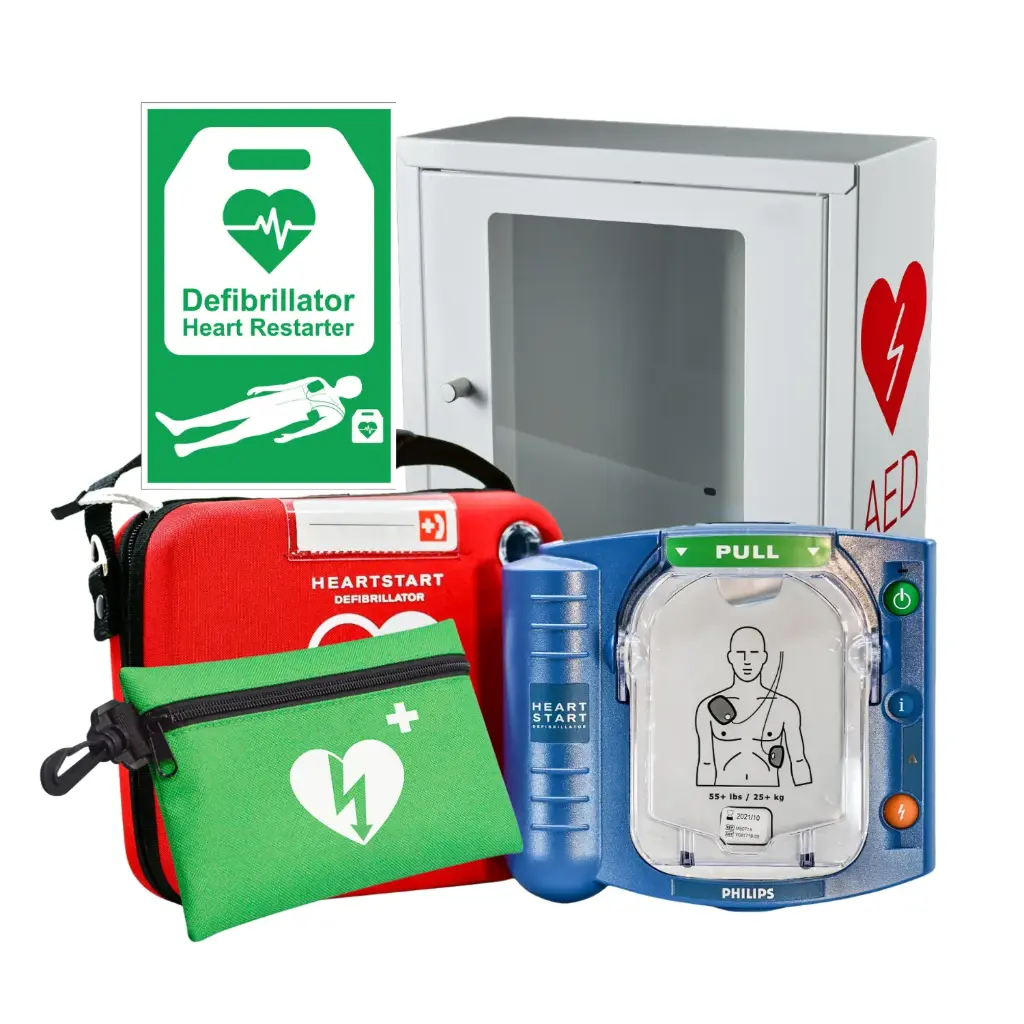

Every item you need for a compliant, ready-to-use AED installation is in the box. No additional purchases required to go live.
| Year | Event | Item | Cost |
|---|---|---|---|
| Year 0 | Initial purchase | HS1 Indoor Bundle M5066A_C02_BI AED + pads + battery + case + cabinet + CPR pack + signage | €1,395.00 |
| Year 2 | Pad replacement | Adult SMART Pads M5071A | €79.50 |
| Year 4 | Battery + pads | Battery M5070A (€179.00) + Pads M5071A (€79.50) | €258.50 |
| Year 6 | Pad replacement | Adult SMART Pads M5071A | €79.50 |
| Year 8 | Battery + pads | Battery M5070A (€179.00) + Pads M5071A (€79.50) | €258.50 |
| Year 10 | Pad replacement | Adult SMART Pads M5071A | €79.50 |
| 10-Year Total Cost of Ownership | €2,150.50 | ||
All consumable prices 0% VAT (Finance Act 2023). Battery M5070A: €179.00 · Adult pads M5071A: €79.50. Prices from hayesfirstaid.com — subject to change.
The Philips HeartStart HS1 runs automatic self-tests every day, week, and month. It monitors battery capacity, pads readiness, and internal circuitry without any action from you. Your only job is to keep consumables in date — and our AED Guardian Service handles the reminders.
The HS1 automatically tests itself daily, weekly, and monthly. Tests cover battery capacity, pads cartridge readiness, shock delivery circuitry, and all internal systems.
If the AED has been used on a patient:
- 1Check outside of AED for damage, dirt, or contamination
- 2Replace pads: locate latch at top edge, slide to side, lift out used cartridge, insert new — click into place, green PULL handle fully down
- 3Check all supplies and accessories for damage and expiry dates; replace anything used, damaged, or expired
- 4Remove battery for 10 seconds, then reinstall to run battery insertion self-test (BIT)
- 5AED auto self-tests on reinsertion; press button when instructed; AED returns to standby
Used pads cartridges and batteries are hazardous waste — not general rubbish. Do not put in your bin or send to landfill (illegal under S.I. 283/2014).
Local authority civic amenity site · Any retailer selling the same battery type · Blue Battery Boxes (supermarkets, newsagents)
Ask about our take-back service when ordering replacement consumables. sales@hayesfirstaid.com
| Child Pads SKU | M5072A |
| Price | €145.00 · 0% VAT |
| Patient criteria | Age <8 years AND weight <25kg |
| Pad standby life | 2 years from manufacture date |
| In the bundle? | No — sold separately |
Schools, creches, sports clubs, community halls, and any setting where children are regularly present. The HS1 adult pads are approved for patients 8+ years / 25kg+. Child pads take precedence when available.
EU Medical Device Regulation (MDR 2017/745)
The HS1 is a Class IIb active medical device. Supplied with UDI label — do not cover or remove. CE marked. Manufactured in the USA.
HPRA Registration & Named Responsible Person
Hayes First Aid is registered with the HPRA as a medical device distributor (S.I. 691/2021 / EU MDR Chapter III). HPRA requires a named responsible person for your AED and registration with your local distributor — we manage this on your behalf. hpra.ie
NAS Registration — National AED Network
Register your AED with the National Ambulance Service (NAS) National AED Network so emergency dispatchers can direct bystanders to your device when calling 112 / 999. An estimated 9,000 AEDs are in Ireland — fewer than half are registered. An unregistered AED cannot be dispatched. Registration is free. becomeacfr.ie/aed · Register online
Consumable Integrity & Philips Indemnification
Philips indemnification is void if expired or non-Philips consumables are used. The grace period ended June 2023. Our AED Guardian Service (90/60/30-day reminders) ensures you are never caught with expired consumables.
Zero VAT — All Bundle Items
AED units, adult pads, batteries, and cabinets are zero-rated under the Finance Act 2023 (Revenue TDM, September 2025). No VAT to claim back. Child pads M5072A also 0% VAT.
Hayes First Aid is an authorised distributor of Philips HeartStart AEDs in Ireland. All units are supplied new, with full manufacturer warranty and Irish-market documentation. Post-deployment event data can be reviewed and analysed by our team using Philips Event Review Pro software — ask about this service when you register your AED.
